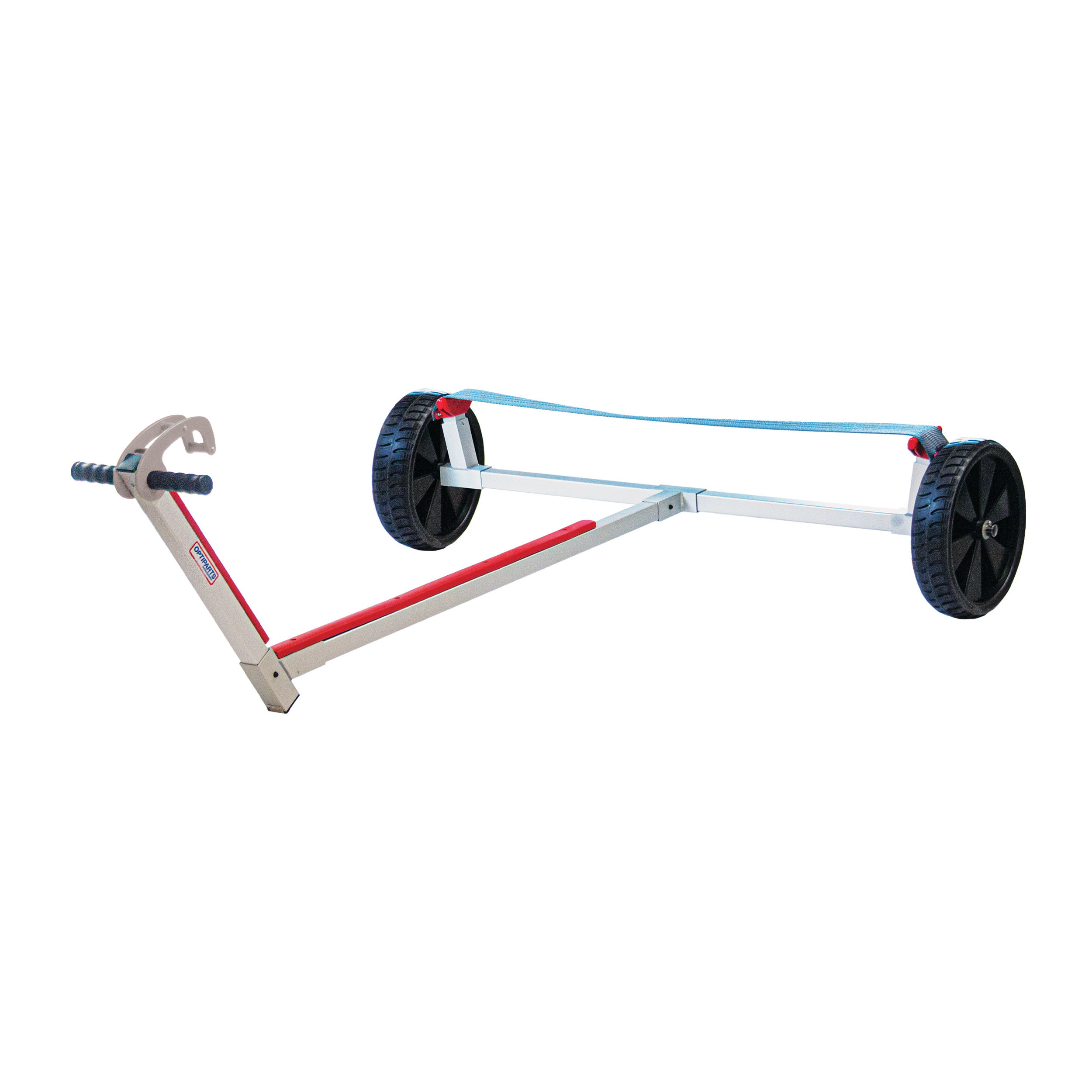

EX1076B – Optiparts trolley with belt for Optimist

Description

The Optiparts EX1076B is based on the same proven lightweight aluminium construction as the EX1076, but replaces the rear hull supports with a supporting belt. The belt lifts and supports the transom while allowing the hull to slide easily from the trolley during launching, reducing contact with the hull.

The trolley is fitted with the Optiparts Bow Wow system to secure the bow in one quick movement. Spring-locking quick-release connections allow the trolley to be fully disassembled in seconds for storage and transport.

The anodized aluminium frame has welded joints and stainless steel axles, and is supplied with large 37 cm Durastar-lite puncture- and temperature-proof wheels and 8 mm stainless steel push-button wheel locks.

Features

• Optimist trolley with supporting belt

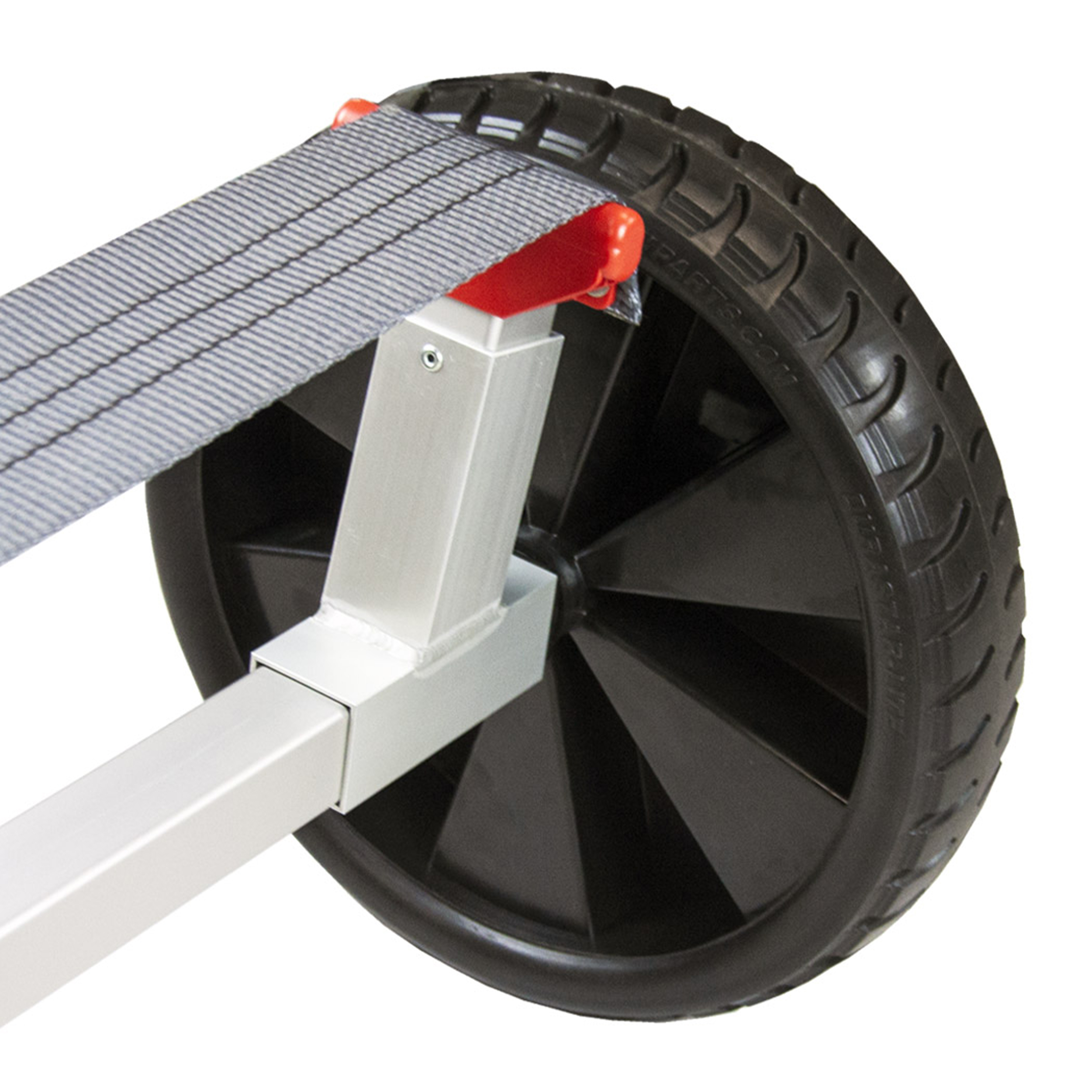

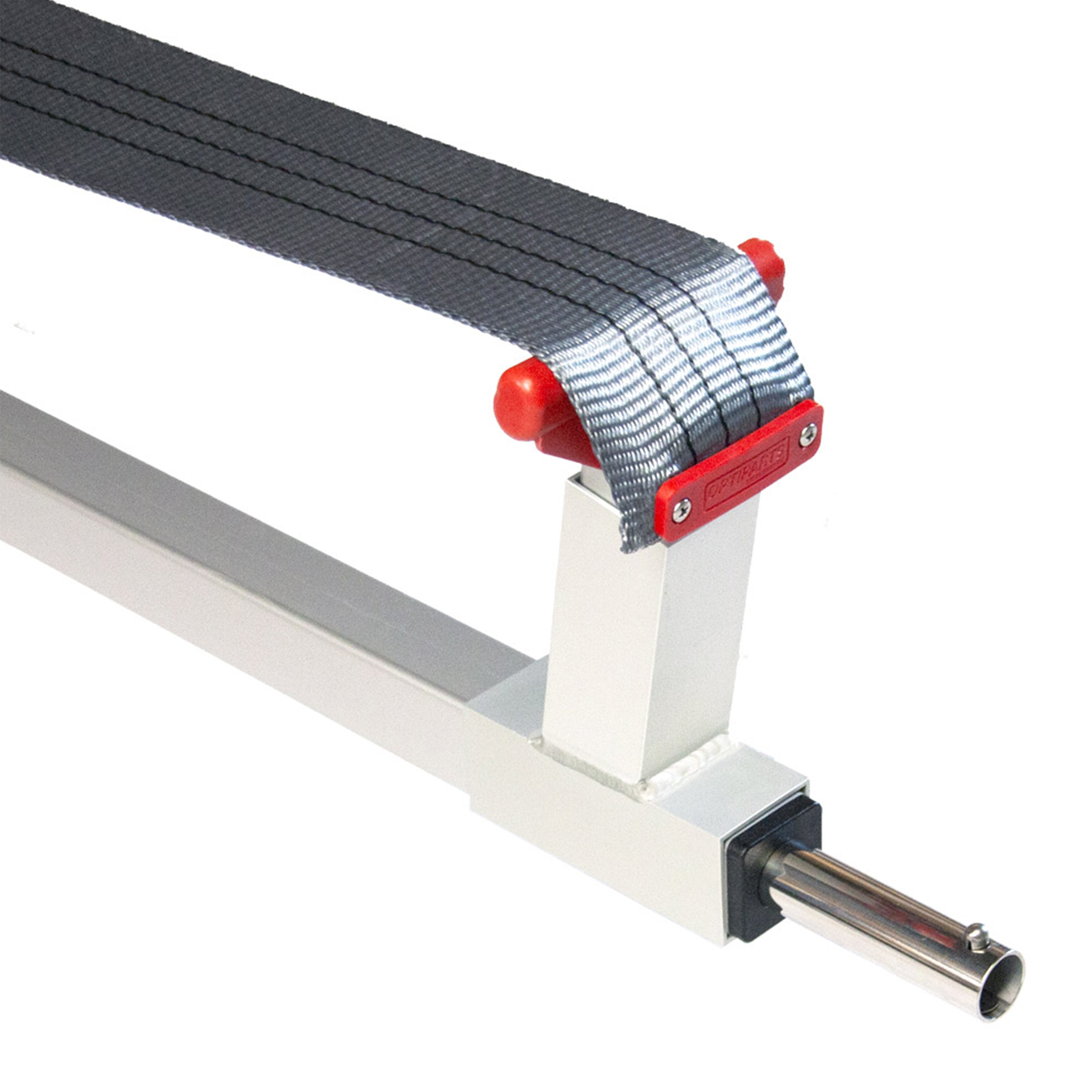

• Belt supports the transom and reduces contact with the hull
• Allows the Optimist to slide easily from the trolley when launching
• Lightweight anodized aluminium construction
• Stainless steel axles
• Bow Wow system secures the bow in one quick movement

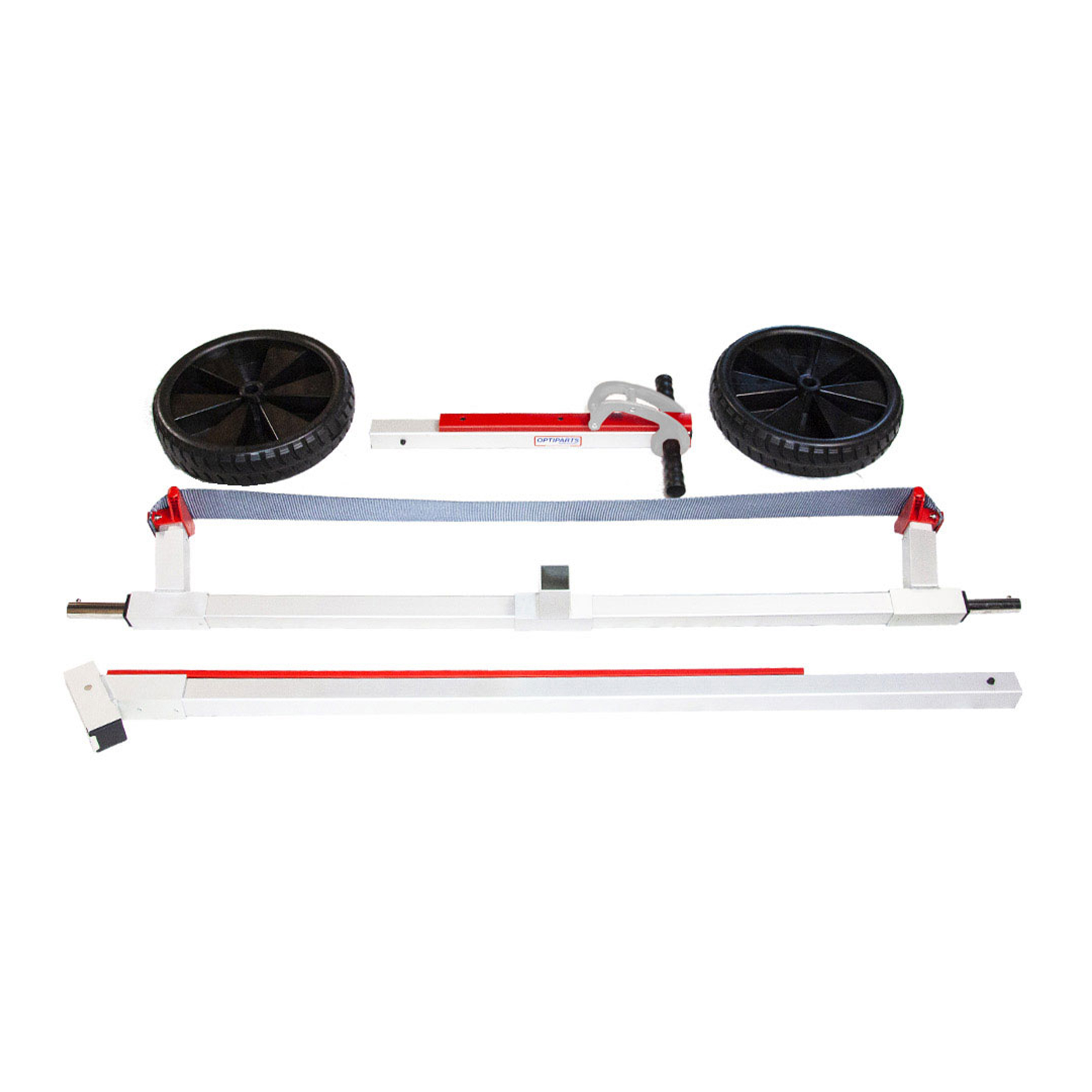

• Fully detachable using spring-locking quick-release connections

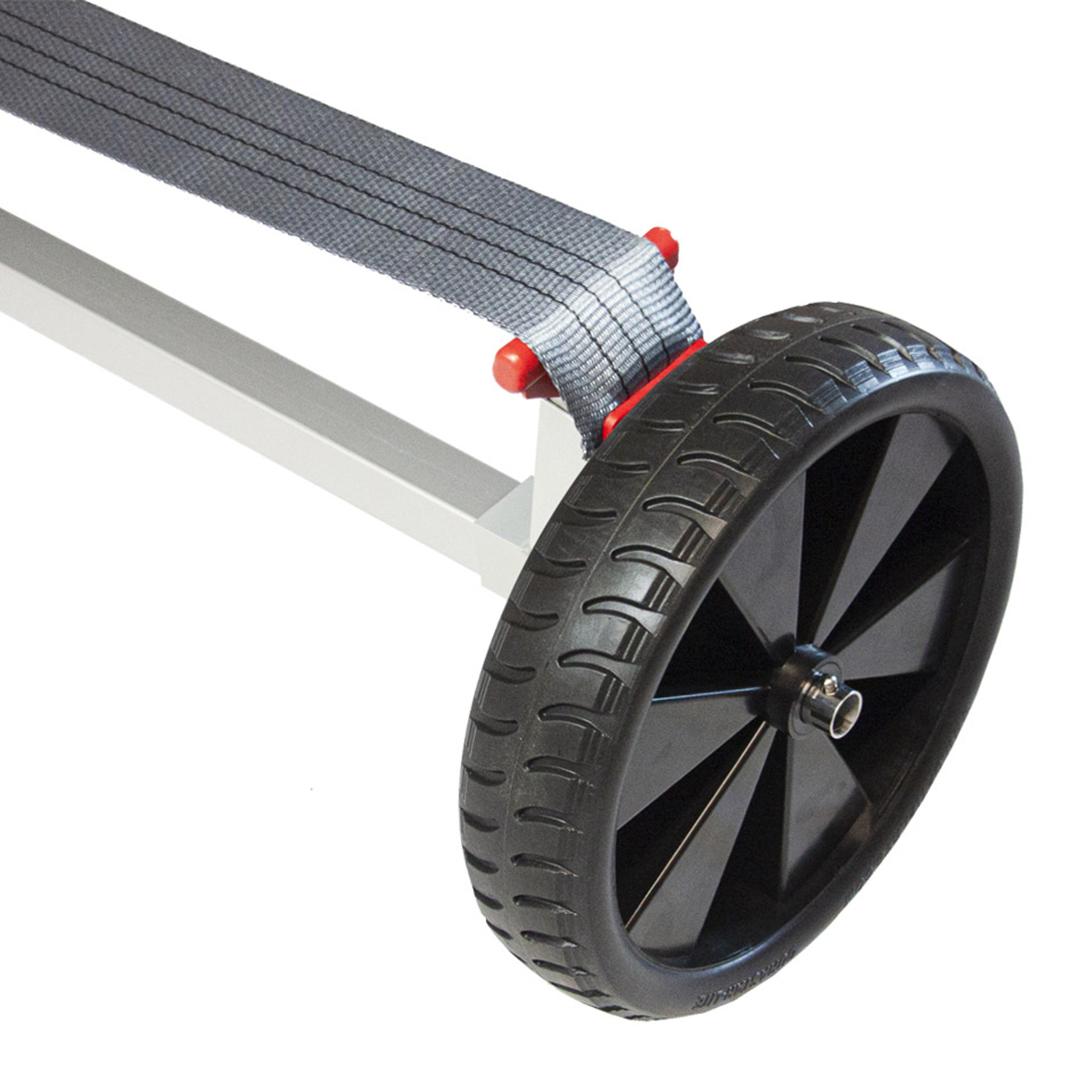

• Large Durastar-lite puncture- and temperature-proof wheels
• 8 mm stainless steel push-button wheel locks

Specifications

• Wheel type: EX10782 Durastar-lite
• Wheel diameter: 37 cm
• Wheel axle: 25 × 75 mm
• Wheel locks: 8 mm stainless steel push-button
